Product Description
Elevator Compensation
Chain
Elevator Speed:≥1.75m/s ≤3.5m/s EU REACH Approval
-
Recognized as a highly reputable supplier in elevator manufacturing
-
Excellence in elevator servicing and modernization
-
Expert in providing elevator solutions to suit individual requirements
-
Offer the most versatile range of elevator globally
-
Help your building to meet the legislative requirements of the elevator operation
-
All planning, manufacturing, and testing is done in China facilities before delivery
-
Applying Japanese / British / American craftsmanship to all makes of elevator
We carry high quality Elevator
Compensation Chain as below
Passenger Elevator Compensation Chain,
Panoramic Elevator Compensation Chain, Home Elevator Compensation Chain,
Hospital Bed Elevator Compensation Chain, Freight Elevator Compensation Chain,
Car Elevator Compensation Chain, Service Elevator Compensation Chain, Goods
Elevator Compensation Chain, MRL Elevator Compensation Chain
for all major elevator and escalator
brands as below
OTIS Elevators, ThyssenKrupp Elevators,
Schindler Elevators, KONE Elevators, Mitsubishi Elevators, Fujitec Elevators,
Hitachi Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma
Elevators, LG Elevators, Hyundai Elevators, BLT Elevators, CANNY Elevators,
SJEC Elevators, KOYO Elevators
|

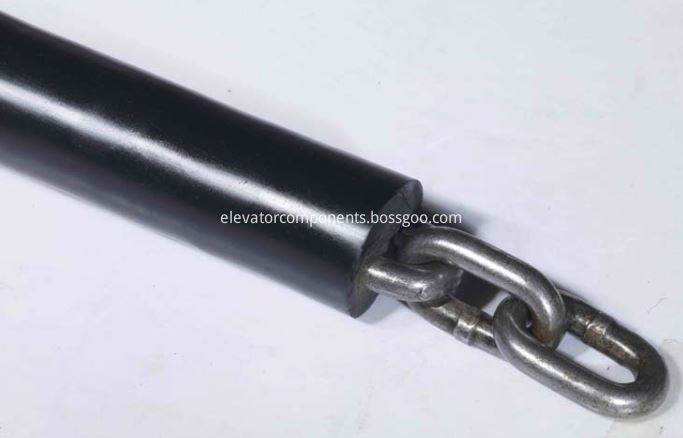

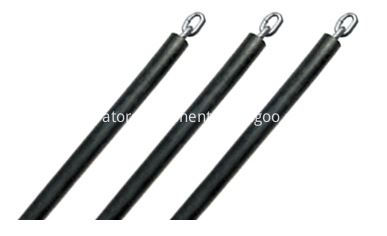

Elevator Compensation Chain
Elevator Speed:≥1.75m/s ≤3.5m/s EU REACH Approval
|
|
Part No.
|
Unit Weight
|
External Diameter
|
Min. Bending Diameter
|
Breaking Load
|
|
BCC-JX-QS075
|
1.12 ±0.2 kg/m
|
24 ± 1.5 mm
|
560mm
|
15.8KN
|
|
BCC-JX-QS100
|
1.49 ±0.2 kg/m
|
29 ± 1.5 mm
|
600mm
|
18.6KN
|
|
BCC-JX-QS120
|
1.90 ±0.2 kg/m
|
30 ± 1.5 mm
|
600mm
|
25.2KN
|
|
BCC-JX-QS125
|
1.80 ±0.2 kg/m
|
30 ± 1.5 mm
|
600mm
|
25.2KN
|
|
BCC-JX-QS130
|
2.00 ±0.2 kg/m
|
30 ± 1.5 mm
|
600mm
|
25.2KN
|
|
BCC-JX-QS150
|
2.23 ±0.2 kg/m
|
35 ± 1.5 mm
|
600mm
|
33.0KN
|
|
BCC-JX-QS175
|
2.60 ±0.2 kg/m
|
36 ± 1.5 mm
|
600mm
|
37.2KN
|
|
BCC-JX-QS200
|
2.98 ±0.2 kg/m
|
38 ± 1.5 mm
|
650mm
|
41.8KN
|
|
BCC-JX-QS250
|
3.72 ±0.2 kg/m
|
42 ± 1.5 mm
|
650mm
|
56.0KN
|
|
BCC-JX-QS300
|
4.46 ±0.2 kg/m
|
44 ± 1.5 mm
|
650mm
|
67.5KN
|
|
BCC-JX-QS350
|
5.21 ±0.2 kg/m
|
49 ± 1.5 mm
|
680mm
|
82.6KN
|
|
BCC-JX-QS400
|
5.95 ±0.2 kg/m
|
52 ± 1.5 mm
|
680mm
|
90.5KN
|
|
BCC-JX-LC110
|
1.12±0.2 kg/m
|
24 ± 1.5 mm
|
1000 mm
|
15.8 KN
|
|
BCC-JX-LC150
|
1.49±0.2 kg/m
|
29 ± 1.5 mm
|
1000 mm
|
18.6 KN
|
|
BCC-JX-LC190
|
1.90±0.2 kg/m
|
30 ± 1.5 mm
|
1000 mm
|
25.2 KN
|
|
BCC-JX-LC180
|
1.80±0.2 kg/m
|
30 ± 1.5 mm
|
1000 mm
|
25.2 KN
|
|
BCC-JX-LC200
|
2.00±0.2 kg/m
|
30 ± 1.5 mm
|
1000 mm
|
25.2 KN
|
|
BCC-JX-LC220
|
2.23±0.2 kg/m
|
35 ± 1.5 mm
|
1200 mm
|
33.0 KN
|
|
BCC-JX-LC260
|
2.60±0.2 kg/m
|
36 ± 1.5 mm
|
1200 mm
|
37.2 KN
|
|
BCC-JX-LC300
|
2.98±0.2 kg/m
|
38 ± 1.5 mm
|
1200 mm
|
41.8 KN
|
|
BCC-JX-LC370
|
3.72±0.2 kg/m
|
42 ± 1.5 mm
|
1400 mm
|
56.0 KN
|
|
BCC-JX-LC450
|
4.46±0.2 kg/m
|
44 ± 1.5 mm
|
1400 mm
|
67.5 KN
|
|
BCC-JX-LC520
|
5.21±0.2 kg/m
|
49 ± 1.5 mm
|
1600 mm
|
82.6 KN
|
|
BCC-JX-LC600
|
5.95±0.2 kg/m
|
52 ± 1.5 mm
|
1600 mm
|
90.5 KN
|
