Product Description

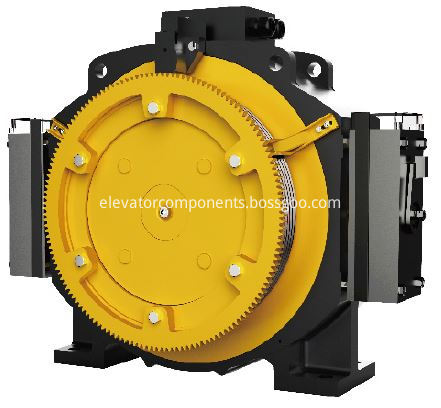

Passenger Elevator PM Gearless Traction Machine
|
Max. Static Load
|
2000kg
|
|
Weight
|
308kg
|
|
Duty
|
S5-60%ED
|
|
Insulation Class
|
155(F)
|
|
Brake
|
2*DZD1-500 | brake torque: 2*515 N.m | Current: 2*1.2A | Voltage:
DC110V
|
|
Color
|
Blue | Gray | Black
|
|
Matching Inverter
|
Monarch | STEP | Optimax | SIEI | FUJI | YASKAWA | Emerson | Blue
Light
|
|
Encoder
|
Machine is coming with Heidenhain ERN1387, ERN1321 & ECN1313 as
TWO options
|
|
Machine Arrangement
|
MRL | MR
|
|
Voltage
|
3 Phase AC340V
|
|
Motor Poles
|
16
|
|
Part
No.
|
Roping
|
Capacity
|
Speed
|
Motor
|
Traction
Sheave
|
|
Power
|
Current
|
Diameter
|
Rope
|
Pitch
|
|
HGLM630-100-4R2H
|
2:1
|
630kg
|
1m/s
|
4.1kW
|
10A
|
400mm
|
4*ø10mm
|
15mm
|
|
HGLM630-150-4R2H
|
2:1
|
630kg
|
1.5m/s
|
6.2kW
|
14A
|
400mm
|
4*ø10mm
|
15mm
|
|
HGLM630-175-4R2H
|
2:1
|
630kg
|
1.75m/s
|
7.2kW
|
16.5A
|
400mm
|
4*ø10mm
|
15mm
|
Diverting Pulley as an option at extra cost
