Product Description

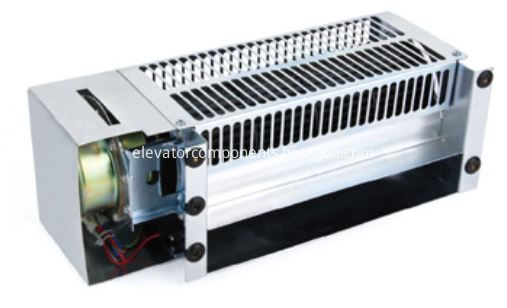

Elevator Cross Flow Fan
Elevator Ventilator
Elevator Ventilator Fan
Elevator Ventilation Fan
Elevator Ventilating Fan
Elevator Ventilation System
Elevator Axial Flow Fan
Elevator Axial Fan
Elevator Aerofoil Fan
Motor: Capacitor Induction
Ball Bearing
Impeller: Reinforced Plastic, ø91mm*260mm
Frame: Steel with Electroplate
Service Life: 30,000hours
Operation Temperature: -20℃- +50℃
Weight: 2.8kg
|
Part No.
|
Voltage(VAC)
|
Frequency(Hz)
|
Current(A)
|
Power(W)
|
Speed(RPM)
|
Air Flow(m3/hour)
|
Noise(dB)
|
|
EVF-YS-ZFB9K/100
|
100
|
50/60
|
0.21/0.23
|
22/25
|
1200/1250
|
245/260
|
≤47
|
|
EVF-YS-ZFB9K /110
|
110
|
50/60
|
0.23/0.25
|
24/27
|
1250/1300
|
255/270
|
≤47
|
|
EVF-YS-ZFB9K /220
|
220
|
50/60
|
0.09/0.10
|
21/24
|
1260/1370
|
250/260
|
≤47
|
|
EVF-YS-ZFB9K /230
|
230
|
50/60
|
0.09/0.11
|
21/25
|
1300/1420
|
260/280
|
≤47
|
We carry high quality Elevator Ventilating Fan
for all major elevator and escalator brands
for OTIS Elevators, ThyssenKrupp Elevators, Schindler Elevators, KONE Elevators, Mitsubishi Elevators, Fujitec Elevators, Hitachi Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, LG Elevators, Hyundai Elevators, BLT Elevators, CANNY Elevators, SJEC Elevators, KOYO Elevators, IFE Elevators
